BLADERACE

28”

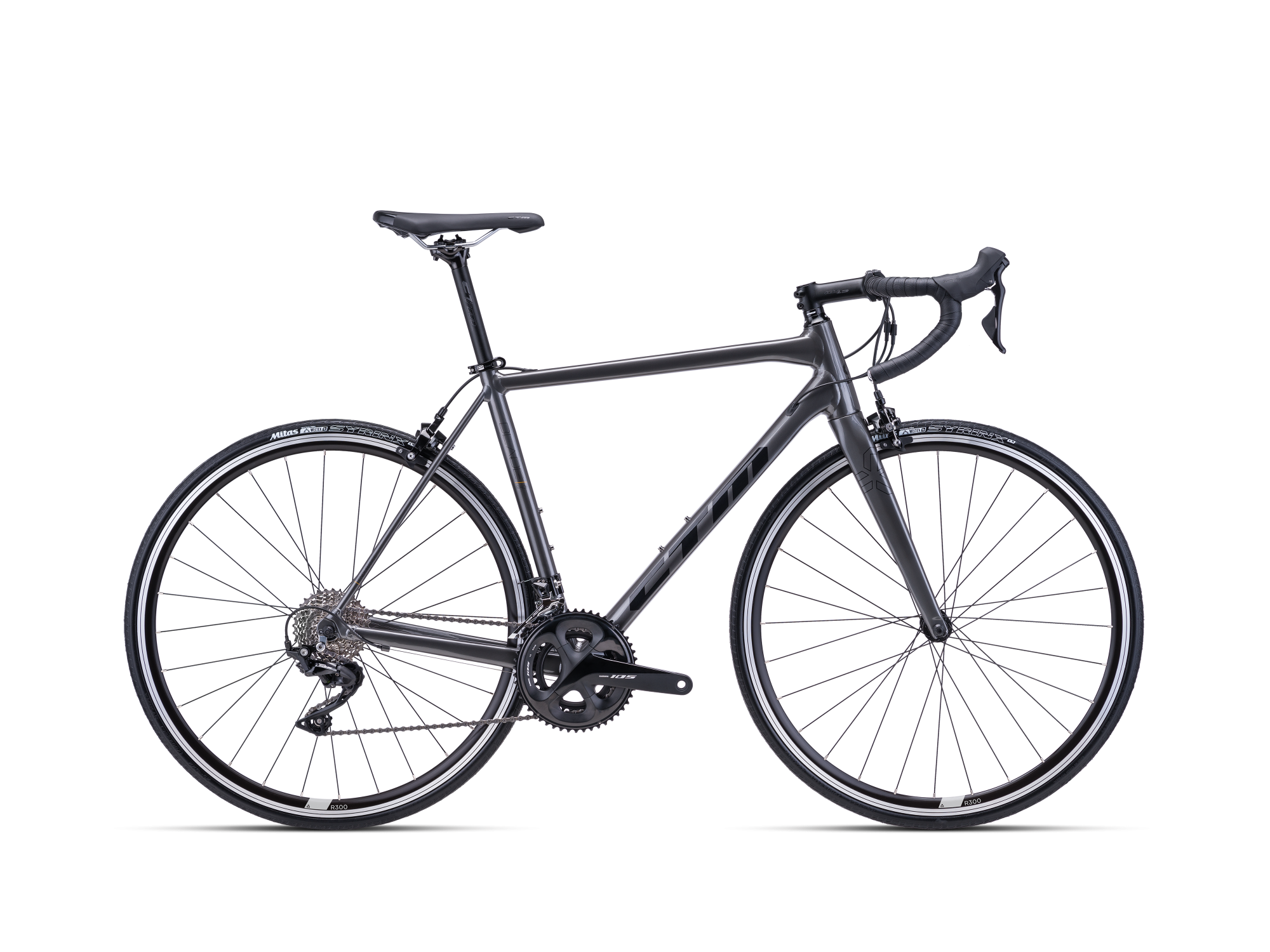

BLADE RACE dark grey / black

999.99 EUR 999.99 EUR

Sale

2022

Specification
Size
Geometry

Specification

Year

2022

Frame

ALU 6061 double butted, 520, 540, 560, 580, 600mm

Fork

REXROC ALU Fork

Shifting

Shimano 105 ST-R7000 11s.

Derailleur

Shimano 105 RD-R7000

Front derailleur

Shimano 105 FD-R7000

Freewheel

Shimano 105 CS-R7000/11sp. 11-32

Chainwheel

Shimano 105 FC-R7000 50/34T (520, 540-170mm / 560,580,600-175mm)

Brakes

Shimano 105 BR-R7000

Rim

Remerx RAPID 622 28H

Tires

Mitas SYRINX RACING PRO 700 x 25C

Hubs

Shimano Tiagra RS400, 28H

Axle

SHIMANO BB

Chain

Shimano CNHG60

Stem

CTM ASM01 110mm

Handlebars

CTM

Head set

FSA Orbit C40, ACB

Saddle

CTM FLAT

Seat post

CTM SPDC1 350/400x27,2 mm

Speed

22 speed

Weight

9.1

* Product specification, description and products themselves can be changed without further notice to improve their function, reliability or design

Bicycle size

200 cm

190 cm

180 cm

170 cm

160 cm

150 cm

XS 520 mm

160-170 cm

S 540 mm

165-175 cm

M 560 mm

175-185 cm

L 580 mm

185-190 cm

XL 600 mm

190-200 cm

* Above sizes are only suggested. We strongly recommend to check before buy.

Geometry

		L 580
A	Head tube angle	73.00
B	Seat tube angle	73.00
C	Horizontal top tube	580.00 mm
D	Seat tube length	540.00 mm
E	Chainstay length	405.00 mm
F	Front center	605.00 mm
G	Head tube length	175.00 mm
H	BB drop	-69.00
I	Fork length	375.00 mm
J	Fork offset	45.00 mm
K	Wheelbase	1001.00 mm
R	Reach	402.00 mm
S	Stack height	582.00 mm
