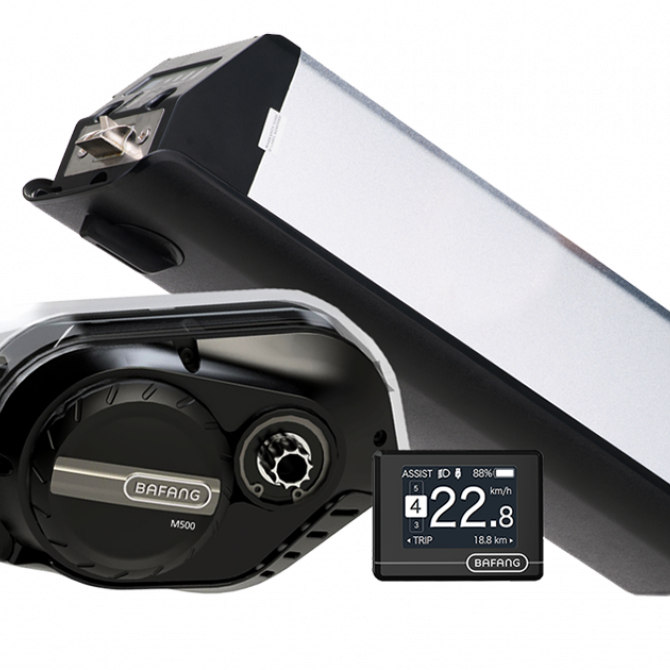

Your weekend getaway might be AREON Xpert. Suspended aluminium MTB “all mountain“ e-bike with 130mm rear travel and horstlink system. With a powerful BAFANG M500 motor that has up to 95Nm of torque and combined with a large-capacity battery of up to 770Wh, exploration can begin immediately. The RockShox Recon Silver with 140mm of travel at the front and DELUXE SELECT+ at the rear will absorb up any bumps. Getting to the steepest peak? Combined with the new 11-speed DEORE with a cassette up to 51T get you there. And downhill won't be a problem either. With a telescopic seatpost, efficient brakes and high-quality WTB TrailBoss tyres, you'll always be in control of your Areon Xpert. Come see beyond the horizon!
| L (19") |
L (19")
|
||
|---|---|---|---|
| A | Head tube angle | 66.00 | |
| B | Seat tube angle | 76.00 | |
| C | Horizontal top tube | 626.00 mm | |
| D | Seat tube length | 483.00 mm | |
| E | Chainstay length | 470.00 mm | |
| F | Front center | 778.00 mm | |
| G | Head tube length | 125.00 mm | |
| H | BB drop | -38.00 | |
| I | Fork length | 540.00 mm | |
| J | Fork offset | 51.00 mm | |
| K | Wheelbase | 1255.00 mm | |
| R | Reach | 470.00 mm | |
| S | Stack height | 625.00 mm |
