BORA1.0 trek

28”

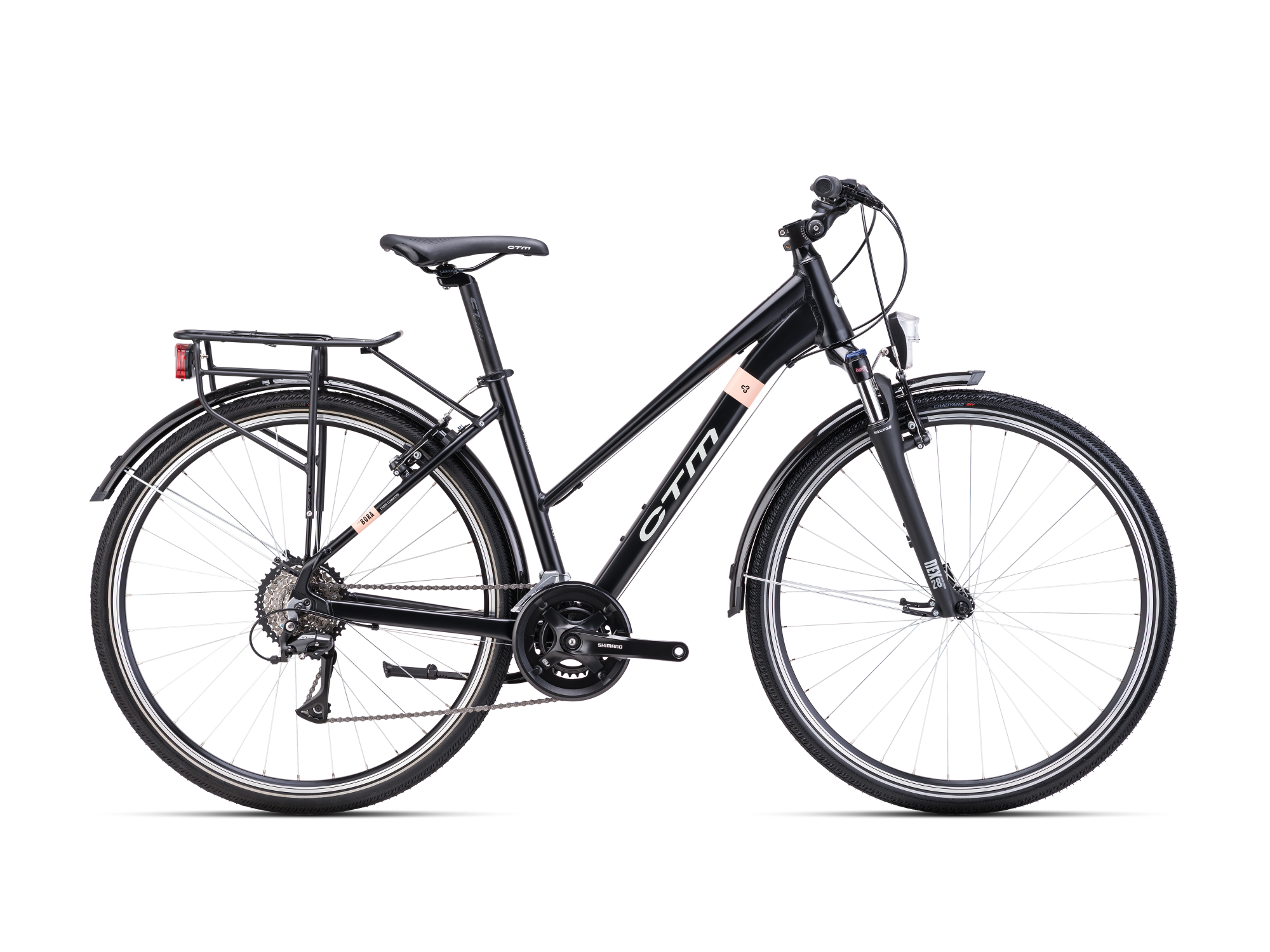

BORA 1.0 trek matt black / pastel orange

519.99 EUR 619.99 EUR

Sale

2025

Specification
Size
Geometry

Specification

Year

2025

Frame

ALU 6061, M, L

Fork

Suntour M3010 P 700C

Shifting

Shimano STEF5002/8 sp.

Derailleur

Shimano Acera RD-M3020

Front derailleur

Shimano FD-TY606-L

Freewheel

Shimano CS-HG400/8, 11-40

Chainwheel

Shimano FC-TY501-2, 46-30T, 175mm

Brakes

Alhonga V-brake

Rim

CTM ZX-lite, 622x19 BA, 32H

Tires

28x1,75 reflex stripe

Hubs

CTM alloy 32H QR black

Pedals

SP 510

Chain

KMC Z7

Stem

CTM adjustable, 90/25,4 mm

Handlebars

CTM rise bar, 640/25,4 mm

Head set

Neco H 156

Saddle

CTM Elite

Seat post

CTM SP 602, 350x31,6 mm

Speed

16 speed

* Product specification, description and products themselves can be changed without further notice to improve their function, reliability or design

Bicycle size

190 cm

180 cm

170 cm

160 cm

150 cm

140 cm

150-165 cm

165-180 cm

* Above sizes are only suggested. We strongly recommend to check before buy.

Geometry

		M (16")	L (18")
A	Head tube angle	68.50	68.50
B	Seat tube angle	74.00	74.00
C	Horizontal top tube	550.00 mm	565.00 mm
D	Seat tube length	406.00 mm	457.00 mm
E	Chainstay length	450.00 mm	450.00 mm
F	Front center	620.00 mm	634.00 mm
G	Head tube length	140.00 mm	140.00 mm
H	BB drop	-60.00	-60.00
I	Fork length	472.00 mm	472.00 mm
J	Fork offset	38.00 mm	38.00 mm
K	Wheelbase	10625.00 mm	10775.00 mm
