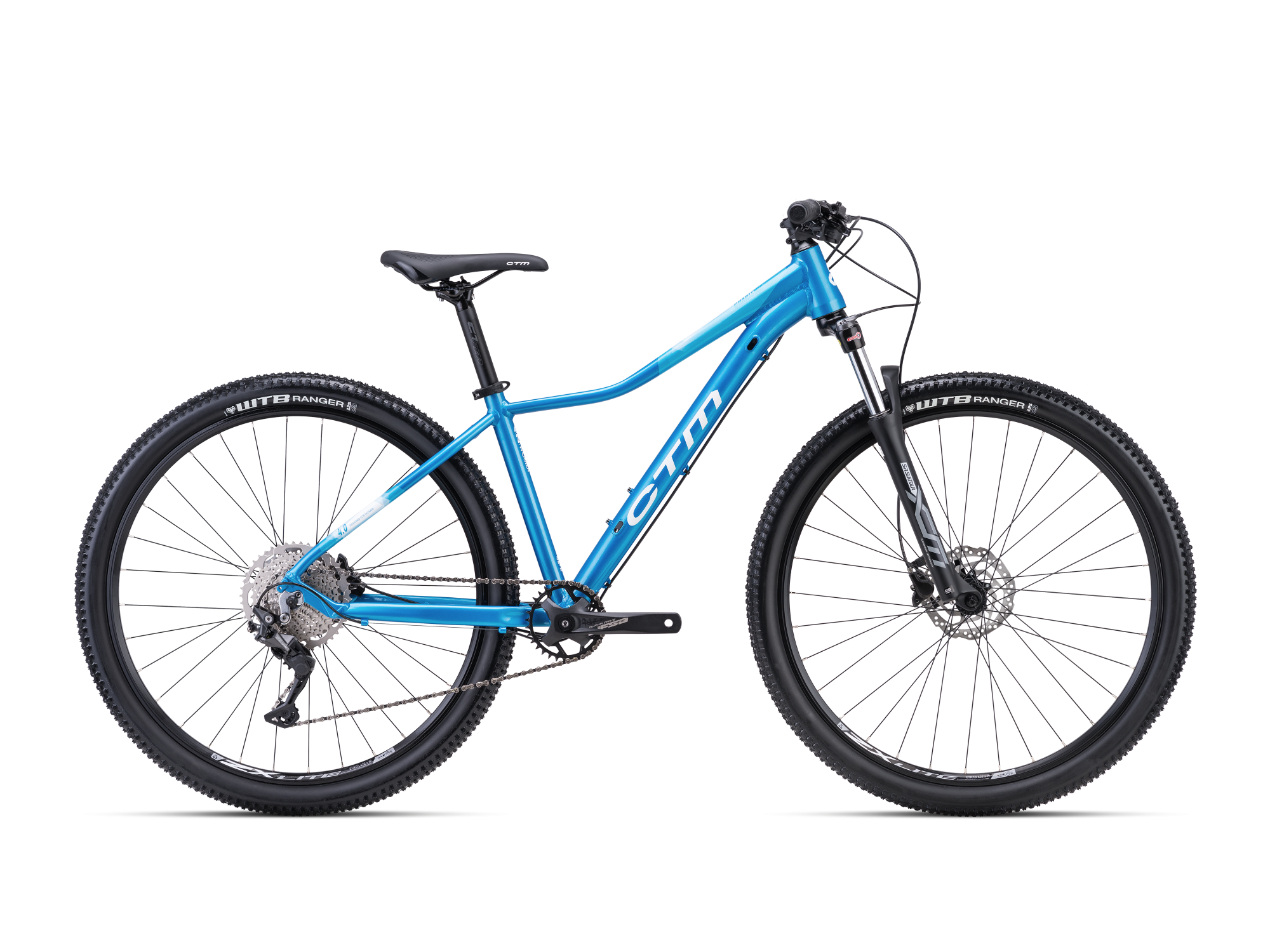

A women's mountain bike that impresses at first glance with its beautiful modern design and rich equipment. The frame geometry is designed for women, so you can comfortably tackle long distances. Two versions are available - with 27.5“ inch wheels or with larger, 29“ inch wheels. The lightweight aluminium frame and quality components deliver the right cycling experience. The components have been chosen to achieve a light weight that makes the bike easy to manoeuvre. For the 4.0, we've relied on the time-tested Shimano Deore 1x10 drivetrain, which delivers ample gear range on any terrain. When tackling any obstacle, you'll also be pleased with the high quality 2.25“ wide WTB Ranger tyres. You've got plans... or rather, don't even plan and set out to explore the unexplored. CHARISMA bike will cover your back.
| M (16") | L (18") |
M (16")
L (18")
|
||
|---|---|---|---|---|
| A | Head tube angle | 69.50 | 69.50 | |
| B | Seat tube angle | 73.00 | 73.00 | |
| C | Horizontal top tube | 590.00 mm | 610.00 mm | |
| D | Seat tube length | 406.00 mm | 457.00 mm | |
| E | Chainstay length | 450.00 mm | 450.00 mm | |
| F | Front center | 665.00 mm | 685.00 mm | |
| G | Head tube length | 110.00 mm | 110.00 mm | |
| H | BB drop | -44.00 | -44.00 | |
| I | Fork length | 500.00 mm | 500.00 mm | |
| J | Fork offset | 46.00 mm | 46.00 mm | |
| K | Wheelbase | 1111.00 mm | 1131.00 mm |
