RUBYX Pro

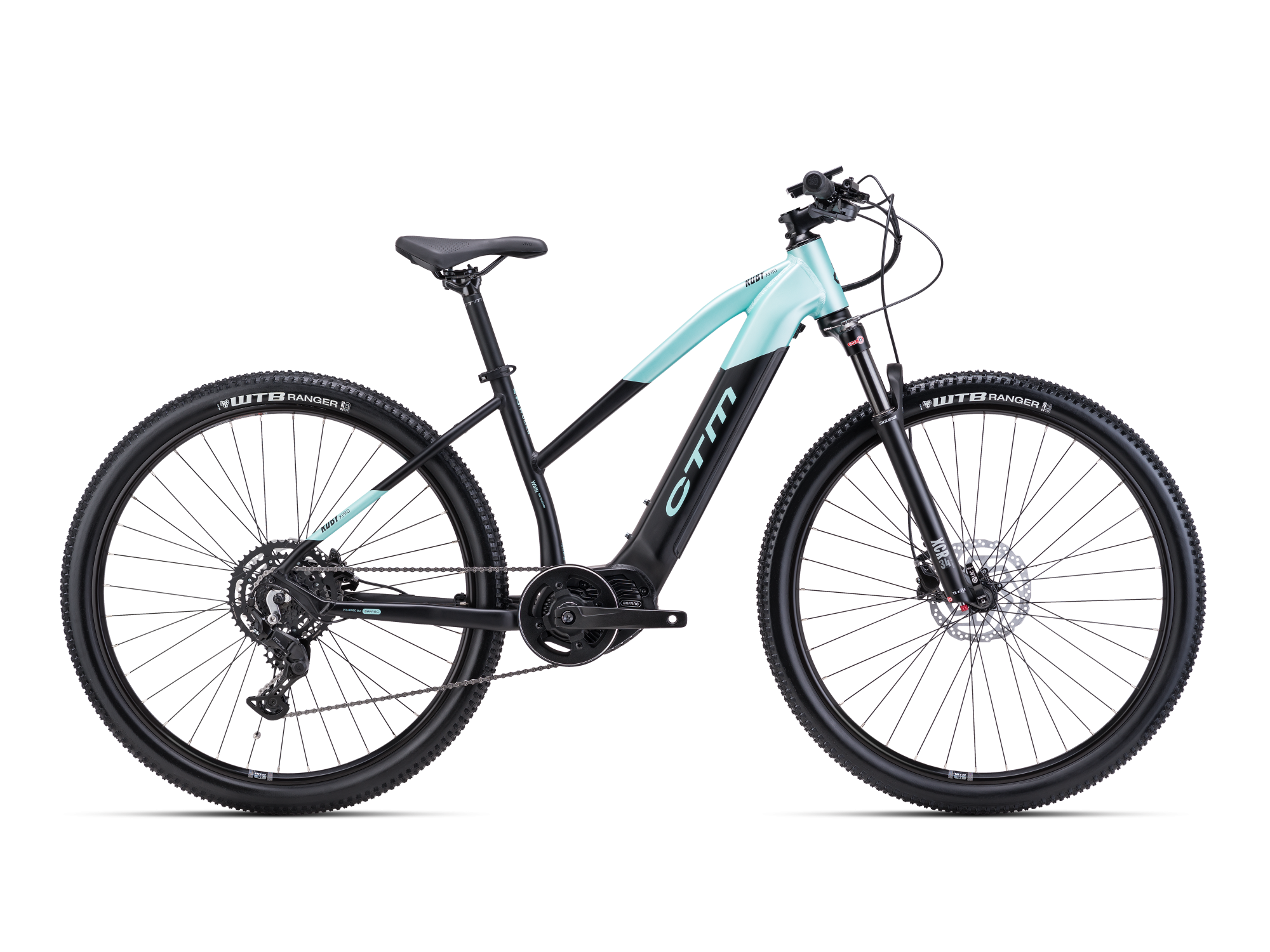

RUBY X Pro 29" - matná čierna / tyrkysová perleť M (16")
RUBY X Pro
2 199.99 EUR  2 499.99 EUR
Sale

  • Details
  • Specification
  • Komponenty
  • Size
  • Geometry

Specification

Engine
BAFANG M500 / 250W / 95Nm
Battery
CTM IGB 720Wh / 48V / 15Ah
Frame
ALU 6061, M (16"), L (18")
Fork
Suntour XCR34 AIR, RLR, boost™ 15x110axle
Shifting
Shimano CUES SL-U4000/9sp.
Derailleur
Shimano CUES RD-U4000
Freewheel
Shimano CUES CS-LG300/9, 11-46
Chainwheel
Bafang 38T,170mm
Brakes
Shimano MT200 / SMRT10M
Rim
WTB ST i29 TCS 2.0 29" 36H
Tires
WTB Ranger 29x 2.25" Comp
Hubs
Novatec D041DSB,15mm/D142TSE,36H ,CL
Pedals
VPE 537
Chain
Shimano CN-LG500
Stem
CTM LCS/60mm
Handlebars
CTM rise bar, 700/31,8 mm
Head set
NECO H153
Saddle
SR Vivo Ergo Lady
Seat post
CTM 350x31,6 mm
Speed
9 speed
* Product specification, description and products themselves can be changed without further notice to improve their function, reliability or design

KOMPONENTY

Bafang M500
Engine
Bafang M500

Bafang - world famous electric motor manufacturer with over 20 years of experience and one of the most popular M500 motors. With an enormous 95Nm of torque, it provides consistent, powerful and efficient support to tackle any terrain. The motor is equipped with a torsion (pressure) sensor whereby the control unit evaluates how hard the rider is pedalling and accordingly ensures a perfectly tuned and responsive performance. You can choose from 5 levels of assistance and there is also a "walking assist" mode. With this versatile, affordable, lightweight (3.4kg) and, most importantly, powerful motor, you'll have loads of endless fun.

Bafang M500
Battery
630 Wh integrated battery

One of the biggest advantages of this bike is certainly the battery with a capacity of up to 720Wh (15 Ah), allowing a potential range of up to 150 km on a single charge - the total range can vary depending on the level of support used and the nature of the route. The battery uses high quality Li-ion SAMSUNG cells and the time to full charge is approximately 5-7 hours.


Display
Display
BAFANG
Clarity, amount of information displayed and a 3.5 inch full colour LCD Matrix screen - this is a brief summary of the main advantages of the Bafang DP-C18. A useful benefit is certainly the USB output, through which you can charge your smartphone. The weight of the display is only 200g, it uses the CAN protocol for communication and it also has IPX5 water resistance. On the backlit display you will of course find all the necessary information about your ride - speed (current, average, maximum), battery status, selected support mode, range, distance travelled, etc.
Remote control
Remote control
BAFANG
You control all the functions of the e-bike via the remote control located on the handlebars of the bike so that everything is conveniently within your reach. Starting up, changing the assistance mode, switching lights on/off and changing information on the display are all instantly at your fingertips. Of course, the control position can be adjusted for your comfort

Bicycle size

190 cm
180 cm
170 cm
160 cm
150 cm
140 cm
M
155-175 cm
L
170-190 cm
* Above sizes are only suggested. We strongly recommend to check before buy.

Geometry

Geometry RUBY X Pro
M (16") L (18")
M (16")
M (16")
L (18")
A Head tube angle 69.00 69.00
B Seat tube angle 73.00 73.00
C Horizontal top tube 576.00 mm 589.00 mm
D Seat tube length 420.00 mm 470.00 mm
E Chainstay length 475.00 mm 475.00 mm
F Front center 662.00 mm 676.00 mm
G Head tube length 120.00 mm 130.00 mm
H BB drop -44.00 -44.00
I Fork length 490.00 mm 490.00 mm
J Fork offset 46.00 mm 46.00 mm
K Wheelbase 1134.00 mm 1153.00 mm
R Reach 405.00 mm 415.00 mm
S Stack height 597.00 mm 607.00 mm
