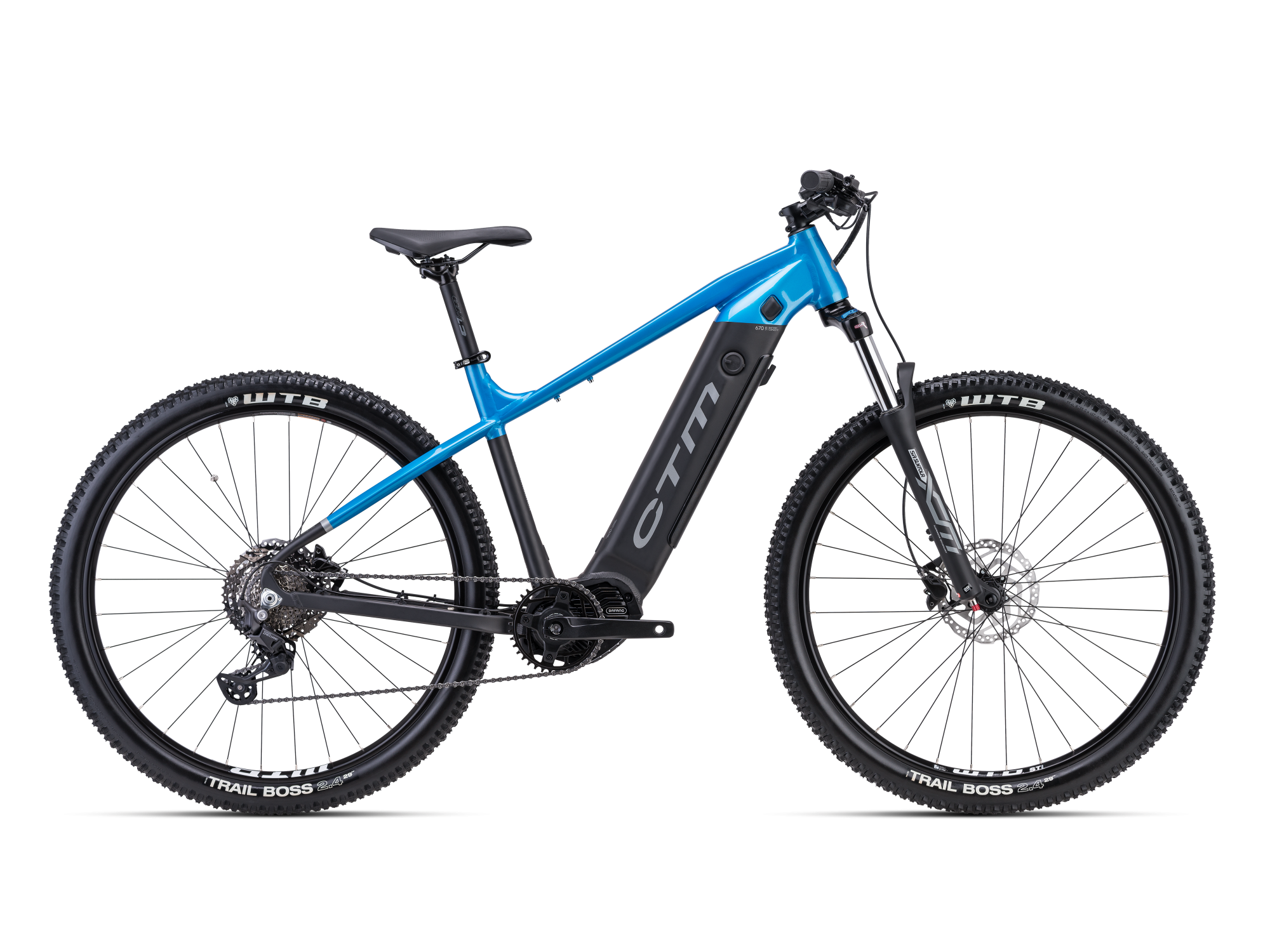

MTB mountain e-bike with the proven Bafang M500 electric motor, designed purely for mountain biking. It delivers 250W of power and up to 95Nm of torque. Sufficient power supply for long trips is provided by a battery with a capacity of up to 670Wh. It reaches full charge in approx. 6-8 hours. The system provides a range of 50-130km - depending on the selected level of support. The component is chosen with durability and flawless functionality in mind. The Suntour XCM34 fork with 120mm travel can handle all terrain irregularities. Reliable and precise Shimano Deore shifting in cooperation with a 10-speed cassette with a range of 11-43T. In any crisis situation, you'll be assisted by efficient Shimano MT200 hydraulic brakes, and for longer rides you'll appreciate the comfortable saddle from Selle Royal.
| L (19") | XL (21") |
L (19")
XL (21")
|
||
|---|---|---|---|---|
| A | Head tube angle | 69.00 | 69.00 | |
| B | Seat tube angle | 73.00 | 73.00 | |
| C | Horizontal top tube | 620.00 mm | 650.00 mm | |
| D | Seat tube length | 470.00 mm | 520.00 mm | |
| E | Chainstay length | 475.00 mm | 475.00 mm | |
| F | Front center | 701.00 mm | 731.00 mm | |
| G | Head tube length | 130.00 mm | 130.00 mm | |
| H | BB drop | -60.00 | -60.00 | |
| I | Fork length | 520.00 mm | 520.00 mm | |
| J | Fork offset | 47.00 mm | 47.00 mm | |
| K | Wheelbase | 1169.00 mm | 1199.00 mm | |
| R | Reach | 421.00 mm | 451.00 mm | |
| S | Stack height | 650.00 mm | 650.00 mm |
