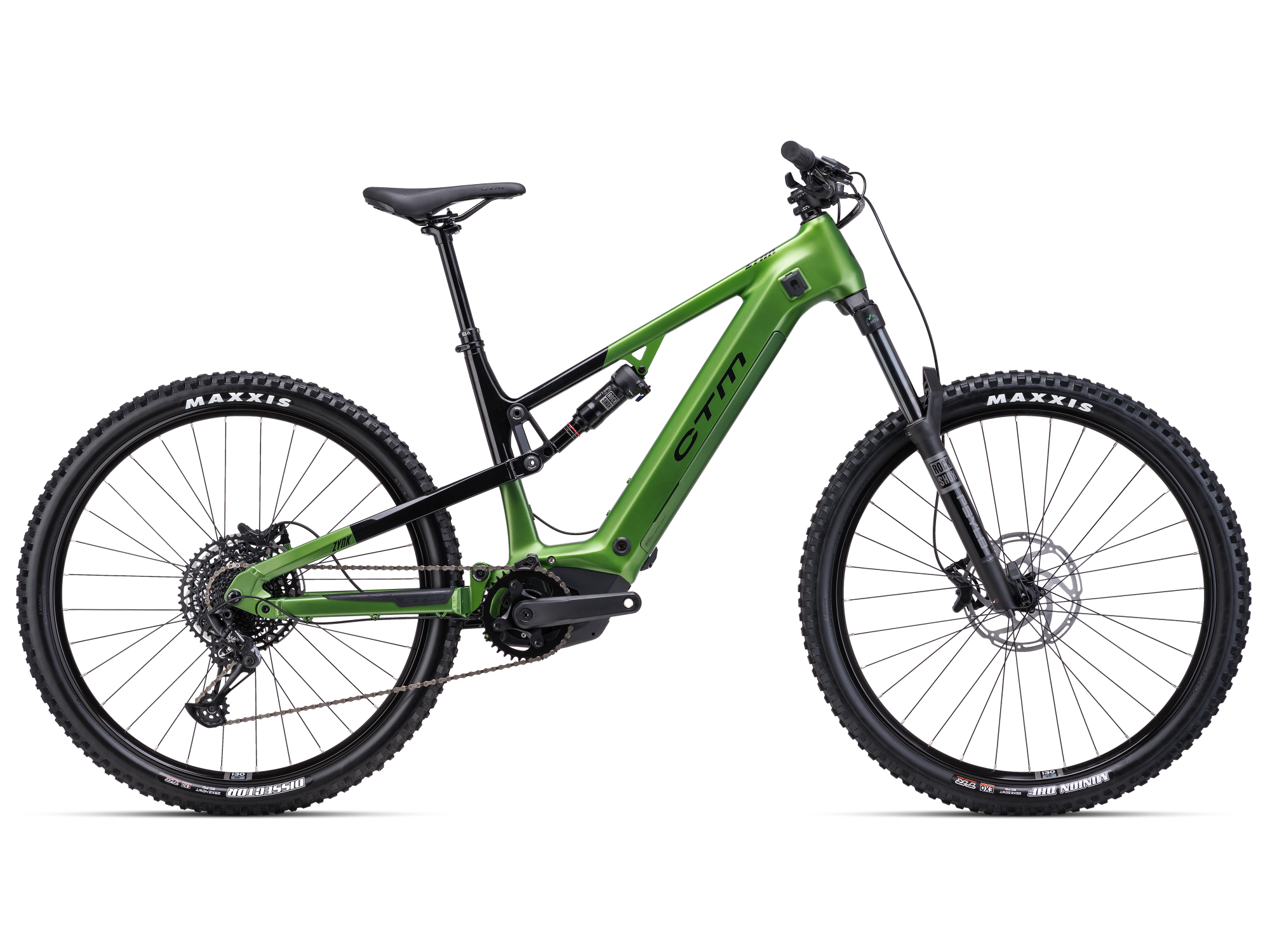

If you're looking for an e-bike that will take you to endless singletrails and fairytale spots, then ZYNK is the right choice. We've been looking for the right combination of components and geometry settings for a long time, so that your every ride is under control and a lot of fun. Tuned geometry and suspension kinematics allow you to send the ZYNK into the most challenging terrains. The extremely powerful and lightweight PANASONIC GX Ultimate motor with up to 95Nm of torque allows you to conquer even the steepest climbs. The engine offers four levels of driving assistance (ECO, STANDARD, AUTO, HIGH) and if it really doesn't work in the pedals, there is also a mode - walking assist. As well as high, you can also go far, thanks to the BMZ battery with a capacity of 820Wh and a range of up to 170km. Extremely fast charging within 3 hours thanks to the 7A fast charger is just the icing on the cake.
| M | L |
M
L
|
||
|---|---|---|---|---|
| A | Head tube angle | 64.50 | 64.50 | |
| B | Seat tube angle | 74.00 | 74.00 | |
| C | Horizontal top tube | 610.00 mm | 633.00 mm | |
| D | Seat tube length | 430.00 mm | 460.00 mm | |
| E | Chainstay length | 480.00 mm | 480.00 mm | |
| F | Front center | 803.00 mm | 828.00 mm | |
| G | Head tube length | 130.00 mm | 140.00 mm | |
| H | BB drop | -25.00 | -25.00 | |
| I | Fork length | 575.00 mm | 575.00 mm | |
| J | Fork offset | 44.00 mm | 44.00 mm | |
| K | Wheelbase | 1282.00 mm | 1307.00 mm | |
| R | Reach | 460.00 mm | 480.00 mm | |
| S | Stack height | 642.00 mm | 651.00 mm |
